Medición de depósitos

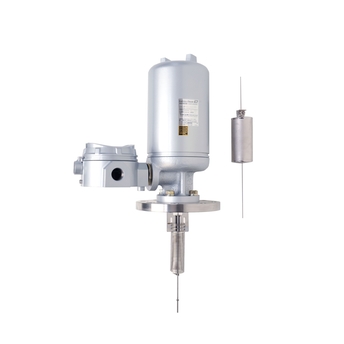

Interruptor de nivel magnético MPC2
Interruptor de nivel con tecnología de desplazamiento
El interruptor de nivel MPC2 es un instrumento de medición de nivel por desplazamiento para instalarse en depósitos. Proporciona una salida de alarma de nivel límite para un máximo de 4 puntos cuando los microinterruptores se activan con el imán. El mecanismo de activación está diseñado de modo que estos contactos funcionen independientemente. Por lo tanto, estos instrumentos pueden emitir alarmas de nivel alto y bajo.
-
Ventajas
Gracias a la tecnología de resorte, mediante los soportes de los microinterruptores se garantizan que su funcionamiento correcto no resulte alterado por la vibración de los depósitos.
Posibilidad de control multipunto (en 4 puntos como máximo) con un...
-
Ámbito de aplicación
Temperatura ambiente: -10 a +60 °C (14 a +140 °F)
Precisión: ±3 mm (± 0,12")
Documentos / Manuales / Software
-
Level Switch MPC2000 MPC2 - Technical Information
MPC series level controllers are displacement type instruments for tank installation. MPC provides 1to 4 control output contacts while activating microswitches with a magnet. The switching mechanism is designed to operate these contacts independent of one another and performs pump control by utilizing the independent operation of the contacts.
Technical Information (TI) -
MPC2 - Techinical Information
Tank Gauging - Level Switch MPC2000 MPC2
Technical Information (TI) -
MPC2 - Operating Instructions
Tank Gauging - Level switch MPC2000 MPC2
Manual de instrucciones (BA) -
Level Switch MPC2000 MPC2 - Operating Instruction
MPC series level switches are displacement type instruments for liquid tanks. MPC displays an alarm for water or oil tank levels and to control pumps and valves by utilizing independent operation of the contacts.
Manual de instrucciones (BA) -
Tank Gauging
Система коммерческого и оперативного учета продуктов в резервуарных парках.
Competence Brochure (CP)07/15Ruso -
MPC2 - picture
Tank gauge
Picture04/07Language neutral -
