AT500

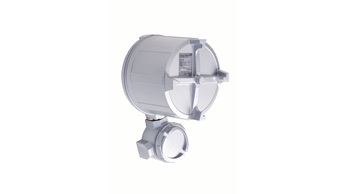

Imagen de producto: AT500

Este producto ya no se encuentra disponible.

Consulte la nueva generación en la sección predecesor / sucesor o contacte con su entidad local de Endress+Hauser.

Documentos / Manuales / Software

  • AT5000-Technical Information

    Tank Gauging

    Technical Information (TI)
  • Analog Transmitter AT500 - Technical Information

    AT500 analog transmitter is used in combination with the
    LT11/12/14/16 float tank gauge.
    When the float tank gauge indicator reaches the alarm setting point,
    AT500 transmitter outputs an alarm contact signal by operating a micro
    switch.
    AT500 is a limit contact unit that has six contacts for controlling the
    level
    of the tank contents.
    The flame proof enclosure allows installation in hazardous areas, such
    as in the petrochemical industry.

    Technical Information (TI)
  • Analog Transmitter AT5000 AT500 - Operating Instructions

    AT500 analog transmitter is used in combination with LT11/12/14/16 float
    tank gauge.
    When the level gauge indicator reaches alarmsetting point, AT500
    transmitter outputs an alarm contact signal by operating a micro switch.
    AT500 is a limit contact unit that has six contacts for controlling the
    level
    of the tank contents

    Manual de instrucciones (BA)
  • Tank Gauging

    Система коммерческого и оперативного учета продуктов
    в резервуарных парках.

    Competence Brochure (CP)
    07/15
    Ruso

Accesorios / Piezas de repuesto

Nr
Order code
Specification
  • 11
    • Nr 11 Order code 017880-5025

      O-ring, Large terminal box, AT5 body,CR

      Size: D120mm, d3.5mm. Material: CR. Part: terminal box, large. Usage: AT1/500, B3-11, DRM9700, DU/R, MPC2, TGM5, TMD1.

    • Nr 11 Order code 017880-5026

      O-ring, terminal box, small, CR

      Size: D100mm, d3mm. Material: CR (Chloroprene Rubber). Part: terminal box, small. Usage: AT1/AT500, DRM9700, DU, NRR261/NRR263, NMT539 Converter, TGM5.

    • Nr 11 Order code 017880-5027

      O-ring, El-compartment, large

      Size: D196mm, d7mm. Material: CR (Chloroprene Rubber). Part: main body cover, AT1/AT500, B3-11. Usage: AT1, AT500, B3-11.

    • Nr 11 Order code 017871-1231

      O-ring, LT/transmitter coupling

      Size: D60mm, d3.5m. Material: CR (Chloroprene Rubber). Part: LT-coupling. Usage: AT1/AT500, DU, DUR, TMD1.

  • 21
    • Nr 21 Order code 017860-6324

      Cover, terminal box, large

      Large terminal box cover. Color: silver. Material: aluminium casting. Usage: AT1/AT500, DUR, MPC, TMD1, B3-11.

    • Nr 21 Order code 017860-6326

      Large-short cover, main body

      Short main mody cover. Color: silver. Material: aluminium casting. Usage: AT1/AT500, B3-11.

  • 31
  • 75
    • Nr 75 Order code 017871-1233

      Coupling, transmitter, LT11/LT12

      ADC, with nut, M4, washer, O-ring. Stud,M10x37/17x10L,nut,M10, 4x washer. Usage: AT1, AT500.

    • Nr 75 Order code 017871-1232

      Coupling, male,for gauge head, MP/HP

      Gauge head side,male pin type,Alu plate without female coupling for transmitter with washer M4 SUS304,nut M4 SUS304. Usage: LT5, LT14/LT16, LT34/LT36.

  • Sucesor

    • Transmisor analógico AT1 - Medición en depósitos

      AT1

      El transmisor AT1 está diseñado para acoplarse a los equipos de medición de nivel LT5. Sus funciones principales son las salidas analógicas de 4 a 20 mA y una salida de alarma de contacto.
