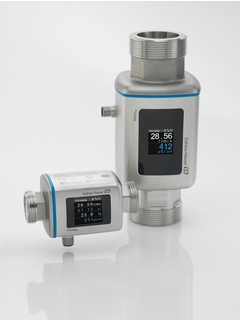

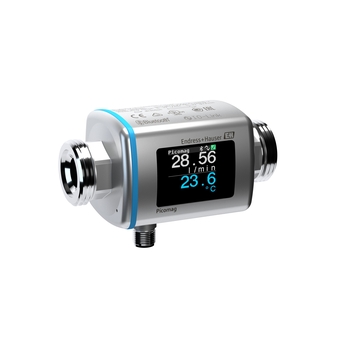

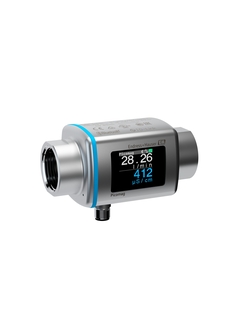

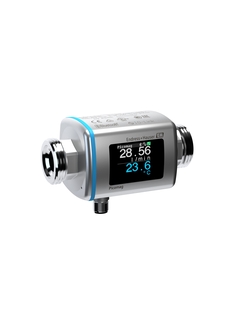

Picomag
Caudalímetro electromagnético
Caudalímetro electromagnético inteligente para servicios auxiliares: intuitivo, sencillo, multivariable
Picomag es el caudalímetro electromagnético económico para diversas aplicaciones en circuitos secundarios con líquidos conductivos en todas las industrias. Los clientes finales, fabricantes de skid, fabricantes de equipo original e integradores de sistemas valoran el ahorro de espacio del Picomag por su capacidad de instalación flexible.Además, su operación intuitiva y orientada al futuro mediante la Smartblue app en todos los smartphones o tabletas con Bluetooth habilitado garantiza una puesta en marcha rápida, segura y sencilla.
- F
- L
- E
- X
-
Productos estándar
- Seguros, resistentes y con poco mantenimiento
Excelencia técnica
Simplicidad
-
Productos de alta gama
- Altamente funcionales y prácticos
Excelencia técnica
Simplicidad
-
Productos especializados
- Diseñados para aplicaciones exigentes
Excelencia técnica
Simplicidad
Variable
Gamas FLEX | Excelencia técnica | Simplicidad |
---|---|---|
Gama Fundamental Satisfaga sus necesidades básicas de medición |
Excelencia técnica
|
Simplicidad
|
Gama Lean Maneje los principales procesos fácilmente |
Excelencia técnica
|
Simplicidad
|
Gama Extended Optimice sus procesos con tecnologías innovadoras |
Excelencia técnica
|
Simplicidad
|
Gama Xpert Domine las aplicaciones más exigentes |
Excelencia técnica
|
Simplicidad
Variable |
-
Resumen de especificaciones
-
Máx. error medido
Volume flow: +/-0.8% o.r. +/- 0.2% o.f.s
-
Rango de medición
up to 750 l/min
-
Rango de temperatura del medio
-10 to 85 °C
-
Máx. presión de proceso
16 bar
-
Materiales húmedos
PEEK, Stainless Steel, FKM, EPDM
Electrodes: 1.4404/316L
-
Selección rápida
Configuración individual
-
Ventajas
Ahorro de tiempo, fácil configuración incluso en lugares de difícil acceso: conexión Bluetooth segura
Menos puntos de medición necesarios: medición simultánea de caudal, conductividad y temperatura
Especialista rentable para uso en espacios reducidos e.g...
-
Ámbito de aplicación
El principio de medición bidireccional es prácticamente independiente de la presión, densidad, temperatura y viscosidad
Ideal para control de calidad de procesos y monitoreo debido a la medición de temperatura y conductividad en servicios públicos.
...
Documentos / Manuales / Software
-
Picomag
IO-Link
Electromagnetic flowmeter
Manual de instrucciones (BA) -
Picomag
Basic Safety Instructions
Associated documentation: BA01697D
Basic Safety Instructions
Special Documentation (SD) -
Proline Picomag
Manufacturer information regarding firmware update (NE 53)
New Firmware version:
Picomag IO-Link: 1.01.01Manufacturer Information (MI) -

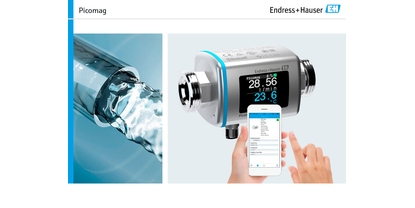

Picomag – pocket-sized plug-and-play flowmeter for utilities (eBook –
Tablet version)
eBook: Check out this electromagnetic plug-and-play flowmeter for
your utility application, and easily acces related tools such as
the SmartBlue App, movies or brochures.Competence Brochure (CP)04/19Inglés -
Picomag – pocket-sized plug-and-play flowmeter for utilities
(e-book – PC version)
eBook: Check out this electromagnetic plug-and-play flowmeter for
your Utility application, and easily acces related tools such asthe
SmartBlue App, movies or brochures.Competence Brochure (CP)04/19Inglés -
Picomag - Le débitmètre plug-and-play intelligent pour les utilités
(eBook – Version PC)
eBook: Essayez ce débitmètre électromagnétique plug-and-play pour vos
applications
dans les utilités, et accédez facilement à tous les outils tels que
l'application SmartBlue,
les vidéos et les brochures.Competence Brochure (CP)03/19fr -
Picomag - Höchste Funktionalität bei gleichzeitig kompaktem Design
Höchste Funktionalität bei gleichzeitig kompaktem Design. Die Firma
Ehrmann AG
vertraut dem Picomag von Endress+HauserCase Studies (CS)01/19Alemán -
Picomag - High functionality and compact design
Ehrmann AG places its trust in the Picomag flowmeter from Endress+Hauser
Case Studies (CS)01/19Inglés -
Picomag
Le débitmètre plug-and-play intelligent pour les utilités
Innovations (IN)09/17fr -
Picomag
Il misuratore plug-and-play semplice e intelligente per le utility
Innovations (IN)09/17Italiano -
Picomag
El caudalímetro compacto para servicios auxiliares
Innovations (IN)09/17Español -

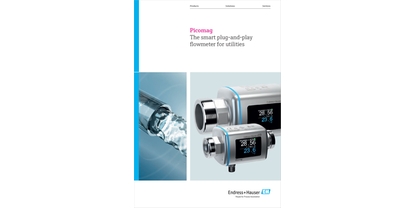

Picomag
The smart plug-and-play flowmeter for utilities
Innovations (IN)08/19Inglés -
Picomag
Das smarte Plug-and-play-Durchflussmessgerät für Hilfskreisläufe
Innovations (IN)08/19Alemán -
Picomag - Le débitmètre plug-and-play pour les utilités
Picomag - Le débitmètre plug-and-play pour les utilités. Brochure
E-direct avec les prix,
les détails techniques et les references pour passer commande.Innovations (IN)02/19fr -
Picomag - De plug-en-play flowmeter voor waterige vloeistoffen in
utilities (E-direct)
Picomag - De plug-en-play flowmeter voor waterige vloeistoffen in
utilities. E-direct
innovatieproduct
brochure met prijzen, technische details en bestelcodesInnovations (IN)02/18Holandés -
Picomag - The plug and play flowmeter for utilities (E-direct)
Picomag - The plug and play flowmeter for utilities. E-direct innovation
product
brochure with prices, technical details and order structure.Innovations (IN)02/18Inglés -
Picomag - Il misuratore di portata plug-and-play per le utility
Picomag
Il misuratore di portata plug-and-play per le utility
(E-direct)Innovations (IN)02/18Italiano -
IODD Single, IODD_IOL_FL_Picomag_0x94FF_0x02_V010101, 18.04.2019 (Flow, Picomag, 0x94FF)
IO-Link,
DTM Configtool with Turck BL20-E-GWEN Version: 3.2.8.0
IO-Link Version: AnyIO Device Description (IODD)01.01.01Language neutral -
IODD Single, IODD_IOL_FL_Picomag_0x94FF_0x01_V010000, 16.02.2018 (Flow, Picomag, 0x94FF)
IO-Link,
IO-Link Version: AnyIO Device Description (IODD)01.00.00Language neutral -
